EAO Series 14 Indicator Compact

The EAO Series 14 Indicator Compact provides 180 degree all-around visibility and a compact design.

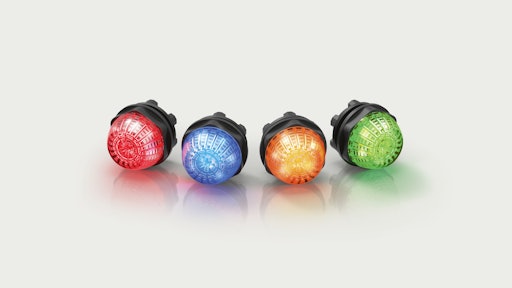

Eao Series 14 Indicator Compact Photo 586e7ba99fe0b

EAO announces the Series 14 Indicator Compact.

  • Features high-intensity, homogenous LED illumination
  • Provides 180 degree all-around visibility in compact, space-saving design
  • Delivers safe and reliable status indication for use in various applications such as machinery, industrial automation, robotics and specialty vehicles
  • Back panel measures 9.5 mm (0.37 in.) deep, outer diameter 33.5 mm (1.32 in.)
  • Polyamide seal
  • Easy installation with connectivity through push-in-terminals (PIT)
  • Well suited for harsh, industrial environments due to robust front protection (up to IP69K) and IK07 impact resistance
  • Provides illumination for over 50,000 operating hours in exterior and interior locations, as well as applications with increased levels of humidity or extreme temperature fluctuations
  • Operational voltage range between 14 and 32V AC/DC
  • Current consumption is less than 50mA
  • Customization options include colors, connectors and cables
