Continental SingleViu Vehicle Instrumentation

During CONEXPO 2017, Continental exhibited its SingleViu line of vehicle instrumentation which features fog-free, double lenses and IP67 sealing.

Continental Pp Single Viu 58d95a333e21c
Contiblkorg Web Sm F3lkfcan9asvy

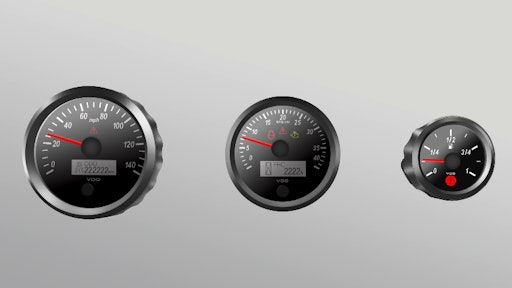

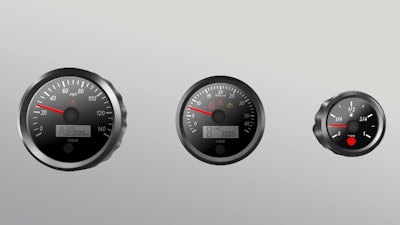

Continental has introduced the SingleViu line of advanced individual instruments for a wide range of applications.

  • Provides precise display of vehicle functions
  • Portfolio encompasses 74 instrument variants
  • Speed and RPM instruments feature dot matrix LCD and are available in models with 80/85 mm (3.1/3.3 in.) and 100 mm (3.9 in.) diameters
  • Temperature, tank fill, pressure, current and voltage instruments are offered with 52 mm (2.0 in.) diameter
  • Custom bezel, dial and warning light options
  • Suitable for use in either new production line applications or as service replacements
  • All instruments dual input capable, analog or J1939
  • Includes fog-free, double lenses
  • Features RGB illumination and easy readability in low light conditions
  • Equipped with Molex 150 connector
  • Can be easily installed using top or flush mounting, and be connected to existing wiring harnesses via an adapter for aftermarket or service replacement applications
  • Operating voltage is 12/24V
  • Temperature ranges from -40-85 C (-40-185 F)
  • Housings meet Protection Class IP67 front and IP65 back
