Marlin Technologies M-Flex CAN Keypads

The M-Flex CAN keypads are composed of UV-resistant matte black silicone rubber to withstand use in harsh operating environments.

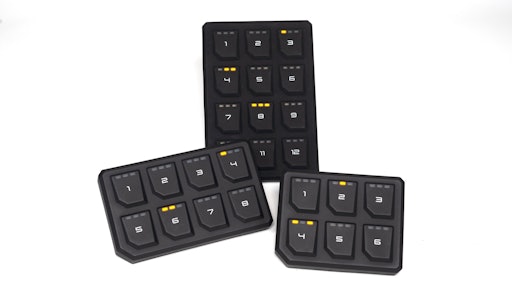

Keypad Group Photo Amber Color
Marlin Logo Color (1)

The Marlin Technologies M-Flex CAN keypads are designed for severe duty, outdoor mobile applications.

  • CAN protocol J1939, CAN Open, and NMEA 2000
  • Tactile feel buttons provide user with actuation feedback
  • Designed to withstand harsh temperatures, shock and vibration, and moisture and electrical transients
  • For 12 and 24V applications
  • Wide operating temperature of -40-85 C (-40-185 F)
  • Composed of UV-resistant matte black silicone rubber
  • Deutsch DT style connector
  • Icons can be customized for customer’s application
  • Includes three amber LED indicators lights per button (alternate colors available)
  • Dimmable white LED backlight
  • Features IP67 protection rating and is RoHS compliant
  • Low power sleep mode for applications requiring direct-to-battery connection; wake on press of push button, CAN message or cycling power
  • Supply Voltage 8-36V DC operating range, reverse polarity protected
  • Typically used for construction, agriculture and turf care equipment, as well as military and other heavy-duty applications
