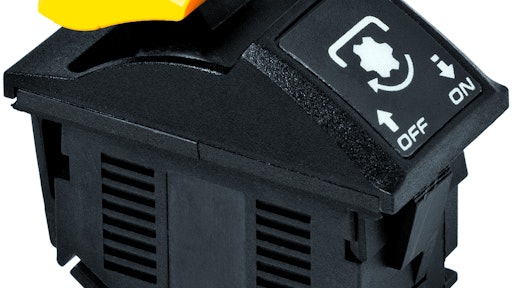

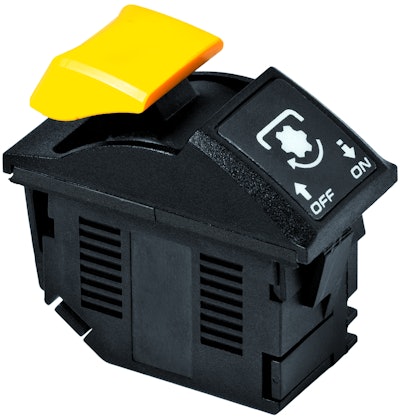

Elobau Sensor Technology Inc. introduces its 151PTO push button for vehicle applications. This new PTO is based on Reed switch technology and has a lower profile then existing PTO push buttons. It is designed to be incorporated in a cab of many types of commercial vehicles.
The switching power is 10W/VA under 48v maximum switching voltage, with a maximum switching current of 0.3 Amps. The electrical connection is through five wires, with a standard Molex plug.
The non-contact Reed switch technology ensures a longer service life, guaranteed to 4 million switching operations. The 151PTO push-button operates in a range from -40 C to 85 C (-13 F to 175 F). The robust rubber boot provides an IP67 protection class above the mounting panel. The push button is tested to DIN IEC 68 Part 2, and materials used have a high chemical resistance.
