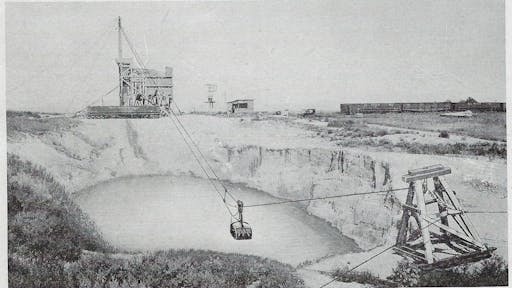

Early in the 20th century, the need existed for efficient excavation of materials in below-grade situations such as under water or in a pit without ease of access where a railroad shovel, the standard excavating machine of the time, was impractical. In 1911, Sauerman Bros. Inc. of Chicago, IL, introduced a solution to the problem – the Slackline Cableway Excavator.
Consisting of a bucket of 1/3 to 3-1/2 cu. yd. (0.25-2.68 cu. m) capacity that traveled on a cableway between a mast and an anchorage or a tail tower, it gained acceptance from contractors, engineers and aggregate producers for four main reasons:
- it excavated to great depth equally well in dry ground or under water;
- it conveyed the spoil over a great distance;
- it elevated the spoil to the hopper or spoil bank;
- and because one simple machine with one operator performed all this work.
While efficiencies depended on a number of factors, it was at its best working to considerable depths and conveying at least 200 ft. (61 m) to an elevated dumping point. The ideal working range increased with bucket capacity, and maximum effective digging depth was one third the operating span, meaning it could dig far deeper than was ever normally required. Many aggregate producers used it to reach material 80-100 ft. (24.4-30.5 m) under water and lift it 100 ft. above the water’s surface to a hopper at the edge of the pit.
It would dig any material that could be turned by an ordinary plow. Working to 100 ft. deep with a 1,200 ft. (365.8 m) span, a single rig could excavate over 6,000,000 cu. yd. (4,587,329.1 cu. m) in a full circle around the mast by moving the tail tower around the perimeter of the area being excavated and, after 180 degrees of such motion, relocating the mast’s guys and changing the positions of the blocks to give access to the other 180 degrees.
This machine was adapted for straightforward earthmoving in the 1920s as the Power Drag Scraper, which used a more efficient crescent-shaped bucket that was simply pulled along the ground to the dumping point, digging as it went, then withdrawn in like fashion. This in turn led to the development of the Scraper Tower Machine, which was designed for long, continuous cuts and fills such as levees. The head and tail towers were mounted on rails, and the bucket was drawn towards the head tower, where it placed the spoil to form the embankment. When the embankment reached grade the two towers were repositioned for another round of work.
