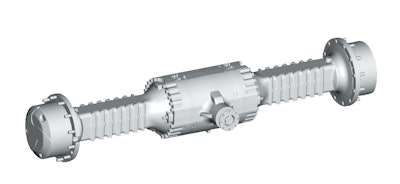

Spicer Model 114 (33R092) Hercules drive axle

March 31, 2008
Dana Incorporated
Spicermodel11433r092herculesdriveaxle 10057396
Adiam 5 10948696

Dana Holding Corp. announces the Spicer Model 114 (33R092) Hercules drive axle, specifically engineered for construction vehicles with operating weights up to 15 tons in front axle applications, and up to 18 tons in rear axle applications.
• 6.00:1 outboard planetary wheel-ends with 425 mm wheel B.C. mountings
• Self-adjusting internal wet brakes
• Trunnion mounting option
• Torque-biasing differential and park brake options
• 100% clutch-actuated, limited-slip differential lock provides constant 2.6 bias ratio with a 45% locking capacity
• Inboard liquid-cooled brakes
