NAF Front Bogie Axle Drive System for Harvesting Machines

NAF's front axle bogie drive system includes an oscillating bogie which works in combination with an integrated Permanent Bogie Balancing System (PBBS) to provide equal distribution of weight and tractive effort on all four tires.

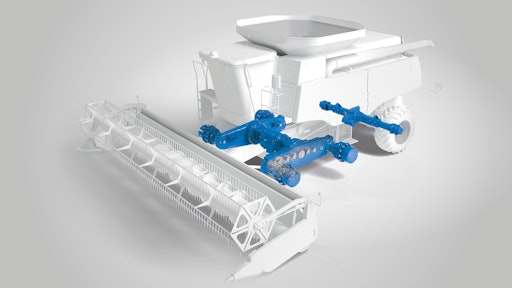

Naf Bild Maehdrescher
200px Logonafsmall 11109370

NAF AG is introducing the front bogie axle drive system for harvesting machines, which was derived from the company's long-term experience with the technology in forestry and construction applications.

  • Designed as cost-efficient alternative to expensive track systems as front drivelines
  • Oscillating bogie, in combination with integrated Permanent Bogie Balancing System (PBBS), provides equal distribution of weight and tractive effort on all four tires
  • Delivers similar driving performance as track systems
  • Modular design
  • Features high traction forces
  • Includes high capacity self-cooling NAF Turbo Brake in planetary drives
  • Reduces soil compaction
  • Offers low maintenance and reduced wear
  • Optional features include tire pressure control and regulation system
  • NAF’s Multi Disc Differential Lock also an available option
  • Can be used with NAF centrally driven rear steering axles with adjustable track width to create full driveline system
