Metal Tech HT514 Composite Gasket Material

Metal Tech Industries' HT514 composite gasket material is capable of withstanding high heat, making it well suited for use in exhaust and aftertreatment systems.

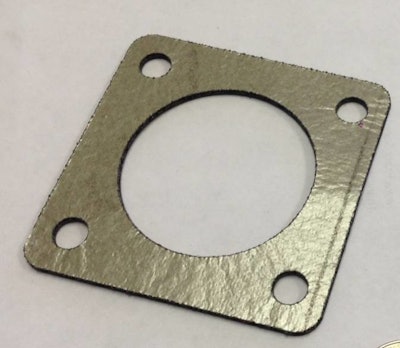

HT514 gasket single 555dec3b71179

Metal Tech Industries offers the HT514 composite gasket material for applications where extreme temperatures are present and other gasket materials fail to survive.

  • Can be placed in exhaust and aftertreatment systems
  • Formulated for high heat, scrubbing and vibration
  • Features a high-temp facing product mechanically clinched to a durable stainless steel core layer, providing strength and durability in both handling and service conditions
  • Able to survive temperatures up to 1,050 C/1,922 F
  • Composite material well suited for high-temp sealing joints as the structure and thickness provide compensation for flange irregularities and deformation due to thermal expansion
  • Features outstanding ignition loss characteristics, compressibility and recovery
  • Resists oxidation and corrosion in harsh sealing environments
  • Available in sheet form, with large sheet size for optimum utilization in the cutting process
  • Fabricates well with traditional cutting methods as well as waterjet and flash cut techniques
  • Thicknesses available include 0.040 in., 0.065 in. and 0.135 in.
