SRC System

Molex introduces its Sealed Rectangular Connector (SRC) System for high-circuit-count applications in harsh operating environments.

Pic Mx9949 11259181

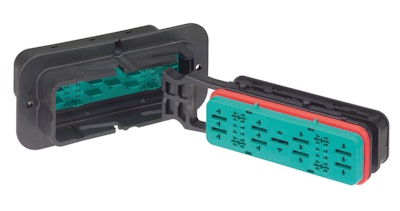

Molex Incorporated introduces the Sealed Rectangular Connector (SRC) System. The next generation SRC system offers a rugged, sealed wire-to-panel and wire-to-wire hybrid connection system.

  • For high-circuit-count applications in harsh environments such as those found in agricultural machinery, construction and mining equipment
  • Primary location for system is the firewall connector, situated between the cab and the engine, but it can also replace existing circular connectors in various in-vehicle applications
  • Includes integral, two-way matte seal with improved retention
  • Passes IP69K testing
  • Use of MX150 (control) and MX150L (power) terminal technology helps OEMs achieve significant production cost savings by eliminating need to purchase, handle and crimp individual wire seals
  • Features modular design consisting of seven segments (A to G) that can be either power or control segments, where one control segment consists of 12 circuits and one power segment consists of three circuits
  • Provides flexibility to increase circuit count up to 84 (control only)
  • Allows for simple field repair and replacement of headers and connectors
  • Uses MX150 terminals with current ratings up to 18A, while the MX150L terminals are rated up to 40A
  • Retention greater than 400N helps ensure good mating in high-vibration environments
  • Single-handed blind mate functionality is achieved through a sliding latch with cam action
  • Plastic stand-offs arranged within the Terminal Position Assurance (TPA) provide anti-scooping feature that prevents damage to terminals when header and connector are mated
  • Flexible standard or mixed power/signal options are available
