tecsis Model UDA Universal Signal Controller and Amplifier

The tecsis Model UDA signal controller and amplifier requires a voltage supply of 11-28V DC and includes course and fine zero adjustments.

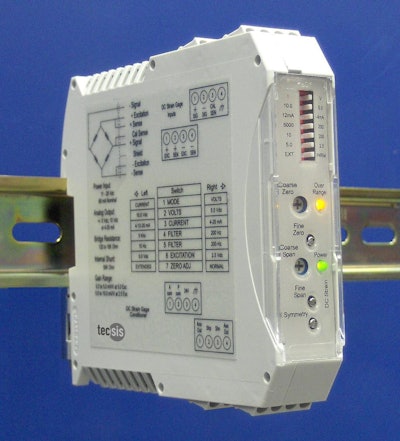

Model Uda For Release 58ed2f6a60166

tecsis LP introduces the Model UDA, a universal signal conditioner and amplifier designed for use with all full bridge, strain gage-based transducers.

  • Amplified output is user-selectable for ±5V DC, ±10V DC, or 4-20mA
  • Features selectable excitation of 2.5 or 5.0V DC bridge voltage
  • Requires supply voltage between 11 and 28V DC to adapt to industrial, process or mobile environments
  • Includes coarse, fine zero, and span and symmetry adjustment for applications requiring precision for both tension and compression load cells
  • Configurable low pass filter actively removes unwanted high frequency signal components and eliminates aliasing errors
  • Well suited for load, force, torque, or pressure sensor applications requiring stable, repeatable and noise-free analog signals for control or data acquisition
  • Housed in rugged, DIN-mountable enclosure with clear panel protecting front-accessible controls
  • Screw terminals provide connection for power, analog output, shunt calibration, and sensor signals
