Eaton OMNEX Trusted Wireless Mobile Control Solutions

The OMNEX Trusted Wireless Mobile Control Solutions are 900 MHz two-way remote-control units which can be used to control heavy machinery from a safe distance.

Eaton Omnex Trusted Wireless Controls
Logo Eaton 10933210

Power management company Eaton announces its eMobility business has launched a line of Eaton OMNEX Trusted Wireless mobile control solutions for heavy machinery and field operations.

  • 900 MHz two-way remote-control units
  • Allows for wireless control of high-value machinery in harsh environments, including mining, construction, agriculture, locomotive and marine markets
  • Can operate heavy machinery, such as vacuum trucks, tow trucks, concrete mixers and cranes
  • Range of up to 1,650 ft. (503 m)
  • Can be programmed for wide range of functions
  • Operators can remotely control boom functions, rotate mixer barrel, or raise and lower a crane, all from a safe distance
  • Wireless controls can be programmed to provide feedback via a screen, haptic response or sequenced light-emitting diodes
  • Undergone Eaton’s proprietary cyber security protocols to prevent signal being hacked into by an outside source
  • Sophisticated control algorithms guarantee fail-safe operation
  • Each controller can be programmed to connect with a vehicle that has been equipped with a receiver installed in the electronic systems of a remote vehicle or machinery
  • Compliant with IP65 and IP67 ratings, which are “dust tight” and protected against water spray as well as complete, continuous submersion in water
  • Redesigned for better form, fit and function, making them easier to hold and control
  • Features updated radios and lithium-ion batteries for better performance

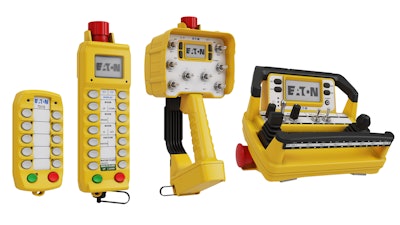

  • Models include Hand-held TD110, Hand-held TD1140 with optional E-Stop, Pistol-grip TD2100 and Small belly-pack TD3100
  • 2.4 GHz versions will be available as well
