icotek EMC-KEL-DS Split EMC Cable Entry

The EMC-KEL-DS split EMC cable entry reliably diverts shield- and field-related interference.

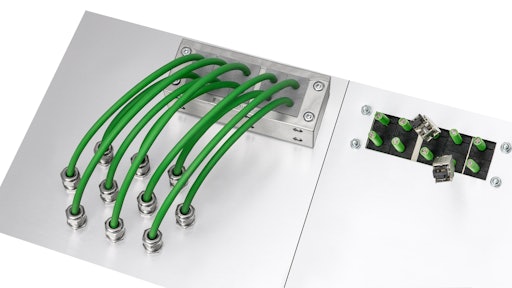

Emc Kel Ds Press
Logo Icotek With Slogan

The split EMC cable entry EMC-KEL-DS is based on the well-known KEL-U system from icotek.

  • Guarantees EMC tightness
  • Reliably diverts shield- and field-related interference
  • Split frame makes it possible to insert pre-assembled cables and to seal them in accordance with IP55
  • Split frame and split grommets alleviate need to cut and re-wire pre-terminated cables
  • Features double chamber
  • Opened cable entry is equipped with a grommet in each chamber
  • EMC grommet is fully conductive cable grommet for contacting the cable shield over 360 degrees in order to divert line-related interference
  • Cable is stripped and sensitive cable shield exposed
  • Additional KT grommet has pure sealing and strain relief function
  • Conductive flat seal is included in the scope of delivery and establishes contact between EMC cable entry and conductive housing wall
  • Available in three versions and suitable for standard industrial cut-out size 112 x 36 mm (4.4 x 1.4 in.)
  • Halogen and silicone free
