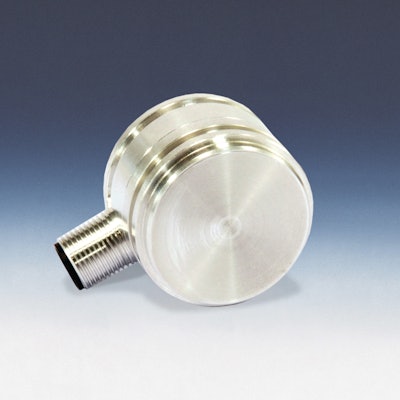

ASM Sensors introduces the PTAM2 inclinometer series, with ranges from ±5 to ±180 degrees for single axis and from ±5 to ±60 degrees for dual axes. This series is the latest addition to ASM's POSITILT family.
• IP67/IP69K rated all-metal housing
• High resolution, linear output signal proportional to inclination angle
• Withstands harsh conditions
• Available with four different absolute analog outputs
• Output signal response time available from 0.1 to 2.0 seconds, in 0.1 second increments
• Compact 36 mm (1.4 in.) dia. housing
• Based on contact-fee and wear-free, MEMS position sensor technology
