M12 Integrated Connector System with Temposonics Model MS Linear-position Sensor

M12integratedconnectorsystemwithtemposonicsmodelmslinearpositionsensor 10058255
Temposonics With Amphenol Logo Red Jpg

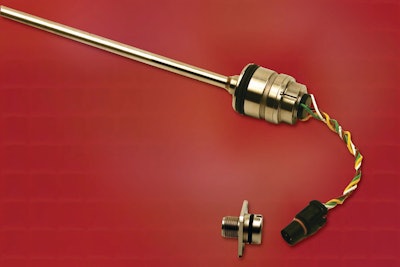

MTS Systems Corp., Sensors Div. has integrated its M12 integrated connector system with its smallest mobile hydraulic sensor, the Temposonics Model MS linear-position sensor.

  • No pins to crimp on ends of wires, no loose connector pins, no wires to solder, and no chance to mis-wire the connector for the cylinder manufacturers
  • Allows a small contact carrier insert to be pre-assembled to the Temposonics M-Series sensor at the factory
  • Entire assembly is mounted to the exterior of the cylinder with four hex screws
  • Non-contact linear-position sensor in a compact 28 mm design
  • 100g shock and 15g vibration rating
  • 100v/m EMI protection
  • Measuring range of 50 to 2,000 mm (2 to 78 in.)
