CT-1000 Potentiometric Level Sensors

Gems Sensors announces the release of its CT-1000 potentiometric level sensors for OEM and end user applications.

Ct1000 10292979

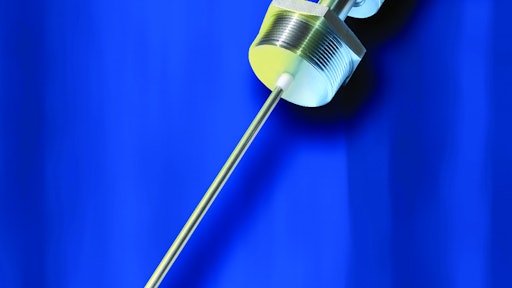

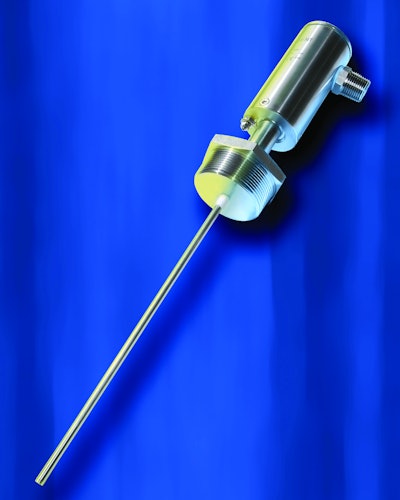

Gems Sensors & Controls announces the launch of the CT-1000 potentiometric level sensors for OEM and end user applications.

  • Provides continuous level gauging for the filling of tanks or continuous separating layer coverage in nearly all electrically conductive liquids
  • Offers resolution of ±1mm independent of pressure, temperature and density
  • Features short measuring times in the millisecond range
  • Suitable for wide-range of tanks with lengths from 8 in. to 19.7 ft. (6 meters) and is available with 4-20mA output or with Hart protocol
  • Robust stainless steel design
  • Handles temperature ranges up to 390 F (200 C) and pressure ranges up to 2,175 PSI (150 bar)
  • Transmits current impulses through sensor electrode that is electrically insulated from the tank or external tube, leading to a linear voltage drop on its electrical resistance
  • Creates electrical connection to environment if sensor electrode is dipped into a conductive liquid (≥1 µS/cm)
  • Contains no moving parts
  • For use in water and wastewater treatment, chemical and petrochemical processing, semiconductor, boiler, marine as well as applications with liquids that are sticky, with foam or with contaminated liquids
