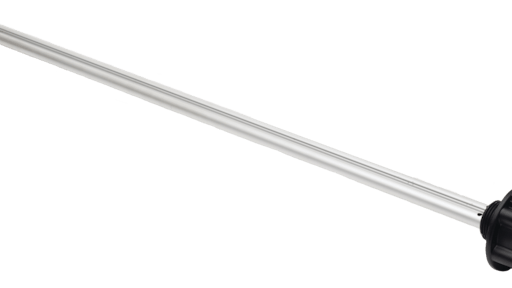

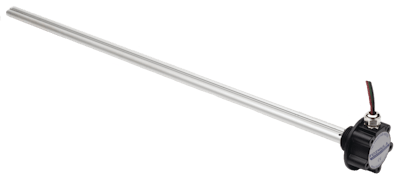

T/LL350 Universal Liquid Level Sensor

Fozmula's T/LL350 liquid level sensor is able to detect the levels of various types of liquids without the need for recalibration.

Tll350 10456743

Fozmula Ltd. has a universal liquid level sensor, the T/LL350, which accurately detects levels, in many different liquids, without the need for recalibration.

  • Contains no moving components
  • Electronics are capable of compensating the sensor’s output for each liquid’s different properties
  • Recalibrates output when different dielectric constant is detected
  • Available in lengths from 150 mm to 2,000 mm
  • Operates in almost any commonly used industrial liquid such as diesel, biodiesel, kerosene, petrol, aggressive race fuels or even water based fluids
  • Features dual probe design, employing two different geometries
  • Probe design allows electronics to recognise if a different dielectric constant has been found in the media
  • Offers an integral 1 in. BSPT thread and five-hole SAE flange as mounting options
  • Can be used in an inverted position if required
  • Includes an IP67 enclosure
  • Features over-voltage and reverse polarity protection
  • Allows for detection of incorrect fuel use or if sudden loss of fuel is encountered
  • Output values from sensor are in voltage, resistance or mA
  • User definable alarm switch can be set at any point along stem
  • Materials of construction include aluminium, PTFE and nitrile
