C3975-XXXX Field-Repairable Continuous Level Transmitter

Madison's field-repairable continuous level transmitter enables in-field replacement of the transmitter's sensor strip.

Madisonc39751000p 10632312
Madisonlogo 10632291

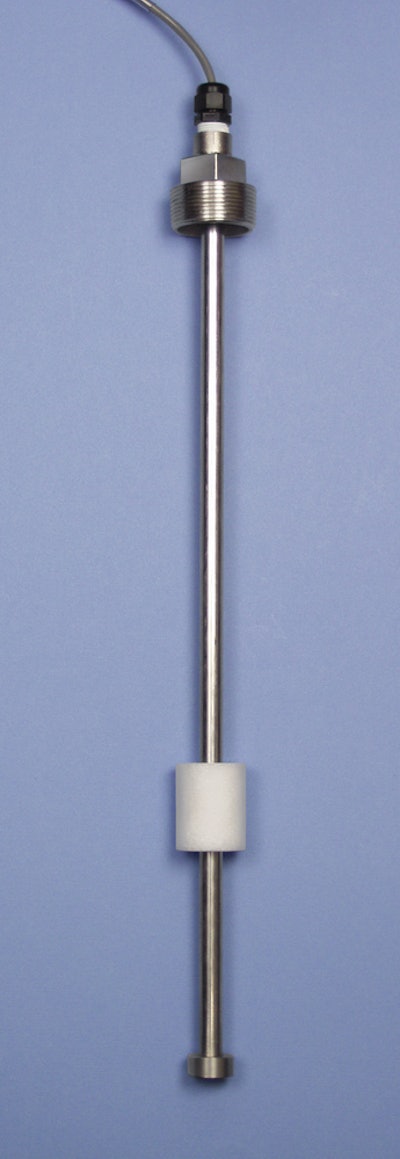

Madison’s Model C3975-XXXX Field-Repairable Continuous Level Transmitter permits in-field replacement of the flexible sensor strip via a simple screw-in assembly. This is desirable where limited overhead space or permanent tank closure are a consideration.

  • Features 1 in. resolution with field-repairable sensor strip
  • Allows for permanent mounting of level switch assembly
  • Eliminates need for tank depressurization and reduces chance of environmental contamination
  • Available with a standard linear output or application specific output
  • Accuracy and reliability of reed switch technology combines with level indication interface that can match needs for continuous level monitoring
  • Includes watertight removable core
  • Features BUNA-N and polypropylene floats, as well as brass and stainless steel stem and fitting
  • 3 in. minimum required above tank level
  • Available for temperature sensing, and alarm and various output signals
