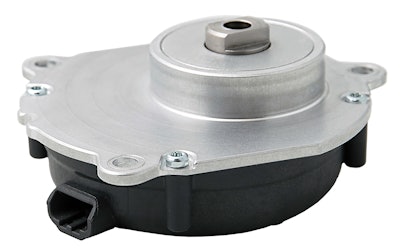

Allied Motion SWS Steering Wheel Sensor

The SWS Steering Wheel Sensor is a compact, integrated steering wheel sensor with adjustable steering feel (haptic) and CANbus.

Allied550 Sws

Allied Motion Technologies has introduced the SWS Steering Wheel Sensor, a compact steer-by-wire steering wheel feedback sensor designed specifically for warehouse vehicles like reach, counterbalance, and lift trucks.

  • Can be connected to CANbus
  • No need for mechanical connection
  • Designers are free to position steering wheel where it is most suitable
  • Delivers superior steering feeling from no stick-slip, no wear, integrated magnetic friction system
  • Compact and flat, mounting directly to most vehicle steering wheels
  • Provides high-resolution sensing (≥16,384 steps/rev)
  • Integrated connector for simple installation and high reliability
  • IP67 rated, complies to PL d according to ISO13849
  • CAN communication output
  • Works seamlessly with Allied Motions’ EPS steering actuator motor for responsive, accurate vehicle steering
