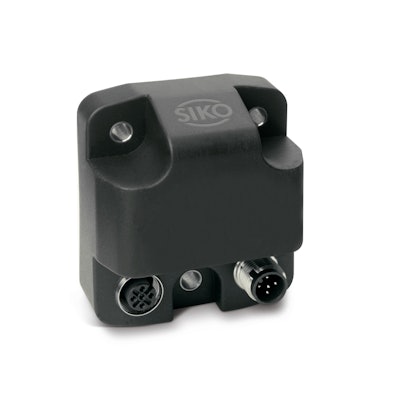

SIKO IKM360R Redundant Safety Inclination Sensor

The IKM360R is designed for use in mobile machines in safety-critical applications up to performance level PLd.

Ikm360 R Ph
SIKO
Siko 591ddf9bc6627

Siko introduces the IKM360R redundant safety inclination sensor that meets the requirements of new safety standards such as ANSI 92.20.

  • Can be used in safety-critical applications up to performance level PLd
  • Achieves safety level PLd with one device, reducing the number of devices needed in an application as well as space requirements, field wiring and maintenance
  • Developed for use in mobile machines, such as wheel and telescopic loaders, excavators, mobile cranes and truck mounted pumping stations
  • Aerial Work Platforms can be monitored and adjusted to limit operating ranges or level the work platform, should the area of operation not be optimal
  • Features a robust design up to IP6K9K
  • Temperature range from 40-85 C (-40-185 F)
  • Optional redundant CANopen or CANopen safety interface
  • Resolution of 0.001 degrees and an accuracy of ±0.2 degrees ensures high degree of reliability of the largest possible application range
  • Redundant one- or two-axis inclination sensor (0-360 or -80-80 degrees)
  • Accuracy ±0.8 degrees, over the entire measuring and temperature ranges
  • Utilizes SIKO’s PURE.MOBILE technology
