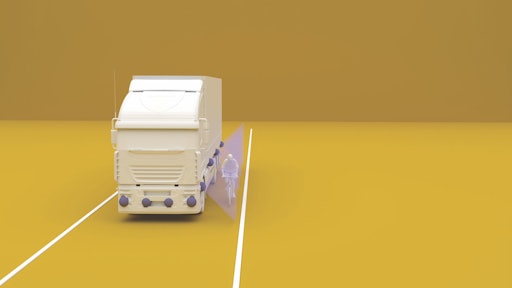

SideScanFlex is a four-sensor system fitted to the side of vehicles to detect objects in the nearside blind spot that allows the operator to choose from four detection configurations, each with different detection distances and audible and visual alerts.
- Maximum detection range of 8 ft. (2.4 m)
- Adjustable audible and visual warning settings
- Mute function silences buzzer after 4 seconds if there is no movement from detected object or vehicle
- Environment learning mode prevents false alarms from ancillary equipment that intrudes in the first 100 cm (39.4 in.) of detection zone
- Compatible with speed trigger module LS-60-A; side detection system can be activated under specific speed
- Compatible with turn indicator switch TS-001; side detection system can be activated only when indicator is on
- Self-diagnostic function alerts the operator of any malfunction of the side detection system
- Operating temperature: -30-80 C (-22-176 F)
- Mechanical vibration to 5G and mechanical shock to 10G
- Waterproof sensors to IP68
- Waterproof ECU to IP69K
- Power consumption of 2.4W
- Current draw of 200mA
