Baumer HeavyDuty Encoders

The Baumer HeavyDuty encoders feature robust, thick-walled housings and shock- and vibration-resistant interiors.

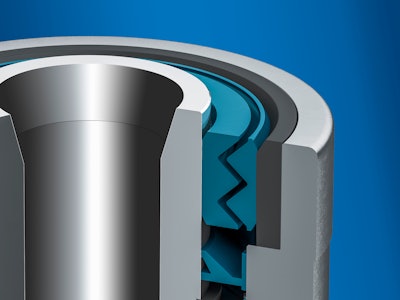

The sealing concept is a combination of labyrinth and shaft seals which permanently protects the HeavyDuty encoders against all types of solids, moist and contamination by adherence.
The sealing concept is a combination of labyrinth and shaft seals which permanently protects the HeavyDuty encoders against all types of solids, moist and contamination by adherence.

Baumer HeavyDuty encoders are designed to operate under extreme conditions, including dust, dirt, rain, and heat.

  • Capable of withstanding dust, dirt, vibration, salt, frost and other harmful impacts found in harsh operating conditions
  • Reliably and precisely performs over long periods of time
  • Features robust, thick-walled housings and shock- and vibration-resistant interior
  • Provides generously dimensioned bearings with large bearing spacing at both shaft ends
  • Electrical isolation protects electronic components
  • Sealing includes corrosion protection by appropriate materials and coatings, against ingress of salt water and chemicals that would impair encoder functionality
  • Sealing concept ensures IP66 and IP67 protection over a wide temperature range up to 95 C (203 F)
  • Combination of labyrinth and shaft seals permanently protects against all types of solids, moist and contamination by adherence
  • Wide selection of product variants available with varied mechanical, electrical and functional options
  • Incremental and absolute encoders are available in 58 mm (2.3 in.) housings, and large designs with 287 mm (11.3 in.) flange size and 150 mm (5.9 in.) hollow shaft
  • Supports all relevant analog and digital interfaces
  • High power outputs ensure good, noise-immune signal over long distances, depending on the product variant up to 550 m (1,804.5 ft.) and in fiber optic transmissions up to 1.5 km (4,921.3 ft.)
