POSITAL IXARC Precision Magnetic Absolute Rotary Encoders with BiSS-C Communications Interface

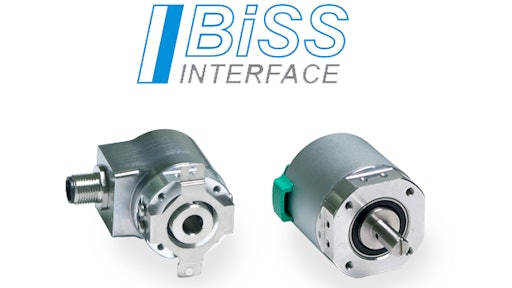

The POSITAL IXARC magnetic absolute rotary encoders are available in a wide range of mechanical configurations, with multiple options for housing and flanges.

Bi Ss C Press Photo
POSITAL
POSITAL FRABA 56cf5586b503f

POSITAL’s IXARC high-precision magnetic absolute rotary encoders with BiSS-C (Bidirectional/Serial/Synchronous-Continuous) Communications interface are suited for commutation and position feedback on BLDC servo motors and fit for motion control applications.

  • Features a robust design, 17-bit resolution and a dynamic response (up to 12,000 rpm)
  • Based on the company’s kit (modular) encoders
  • Multiturn variants feature a 32-bit rotation measurement range (over two billion revolutions)
  • Self-powered rotation counter, using Wiegand energy-harvesting technology, eliminates the need for backup batteries or gear drive systems
  • Wide range of mechanical configurations, with multiple options for housing and flanges, shaft type, and level of environmental protection are available
  • Available with a 36 mm (1.42 in.) housing, enabling them to fit into the same mounting footprint as Size 15 resolvers
  • Offers multiturn absolute digital position measurements, eliminating the need for an A/D converter
  • BiSS-C is a high-performance interface that supports real-time communications between control devices and sensors/actuators in robots and other automation systems
