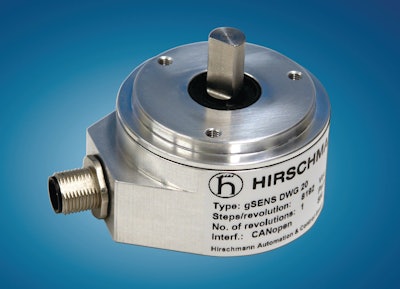

gSENS DWG 20 rotary encoder

Gsensdwg20rotaryencoder 10057267
Wika Mobile Control Logo Unternehmen 2018 01

Hirschmann Automation and Control adds the rotary encoder gSENS DWG 20 to its product portfolio. With this high resolution optical absolute value sensor, with aluminum housing and a protection class of IP67, mechanical angle settings can be converted to digital signals and forwarded to the control system via the CANopen interface. This makes the gSENS DWG 20 particularly suitable for use in all vehicles with a turnable superstructure.

  • Gray-coded sampling disks with 14 tracks (including monitor and interpolation track).
  • Power supply designed for 10-30-volt direct current
  • Temperature range of -40 to 85 C
  • High EMC, vibration and shock resistance
