SP 5000 Series Rotary Position Sensors

Sp5000seriesrotarypositionsensors 10058154

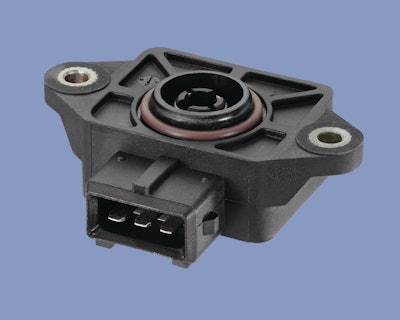

Novotechnik's SP 5000 Series rotary position sensors, designed for harsh environments, feature easy mounting and availability of custom angles.

  • Mounting holes with brass bushings and a hollow shaft
  • Housing and bearings made of high-grade temperature- resistant plastic
  • 3-pin AMP Junior-Timer connector provides reliable interface connection
  • 105- and 120-degree electrical angle measurements standard
  • Repeatability is 1.0 degree
  • Temperature coefficient of the output-to-applied voltage ratio is 15 ppm/K
  • Designed to convert rotary movement into a proportional voltage signal
  • Withstands vibrations to 20g
  • Temperature range of -40 to 125 C
