OTTO B3S Sealed Double Break Basic Switch

OTTO Releases the New B3S Sealed Double Break Basic Switch

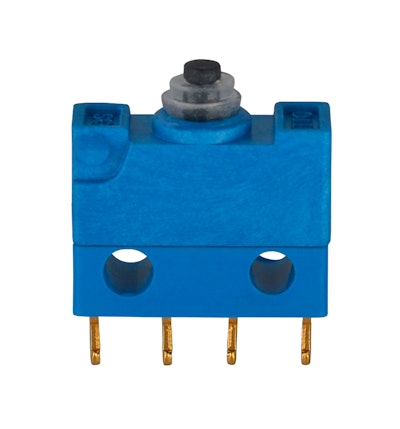

B3 S Front
OTTO exexcel 3x3 578d797091bcc

OTTO announces the B3S sealed double break basic switch.

  • Sealed to IP68S
  • Tested to 1 million cycles at logic level
  • Capable of handling up to an 8 A resistive load
  • Choice of normally open (Form X), normally closed (Form Y), 3 terminal SPDT (Form C) or 4 terminal SPDT (Form Z)
  • Multiple terminal styles and wire lead options are available including single turret solder style, double turret solder style, Quick Connect, PC pins and wires with varying lengths.
  • Available with or without lever actuators
  • Can be used as part of pushbutton, trigger and toggle switches that require reliable sealing for demanding applications
