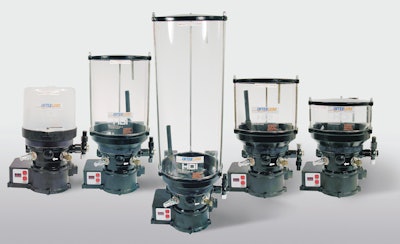

AC Automatic Lubrication Pumps

The AC range of automatic lubrication pumps from Interlube Systems are a compact, electrically-operated, multi-line lubrication system, with three reservoir sizes.

• Multi-line concept enables each bearing to be lubricated independently, and damage to one feed line does not render the system inoperable
• Easy to operate and virtually maintenance free
• Fully adjustable
• Delivers precise lubrication whenever a vehicle is in motion
• Serves a maximum of 60 points
• Suitable for use with oil and grease up to NLGI grade 2
• Features a multi-position timer with memory
• Six color-coded pumping units are available, with different stroke outputs to cater for varying output requirements, from 0.01cc to 0.1cc
• AC1 is a compact reservoir model designed for light commercial vehicles, mini/midi buses and forklift trucks, in 12 or 24V with up to 12 lubrication points served
• AC2 is designed for trucks, buses and trailers in 12 or 24V, serving up to 36 lubrication points
• AC3 and AC6 are for use on larger commercial vehicles, buses and trailers, serving up to 60 lubrication points using SAE80 oil to NLGI grade 2 grease
