Topcon Apollo Application Controllers for Air Seeders

Topcon's Apollo application controllers combine rate control, advanced path planning and section control with high accuracy autosteering and agronomic controls.

Apollo Topcon 564a39254c804

Topcon Precision Agriculture announces the Apollo line of application controllers for air seeders.

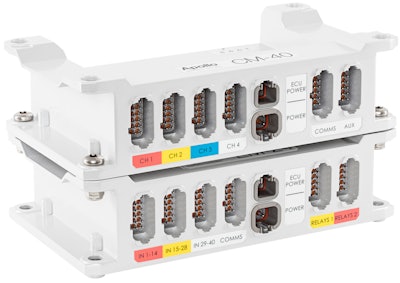

  • ECUs (electronic control units) include the CM-40 control module and the EM-24 expansion module
  • Utilizes Topcon's Horizon software when combined with the X30 console
  • Feature ISO UT compatibility enabling use with virtually any ISO-VT console on the market
  • Combines advanced rate control, advanced path planning and section control with high accuracy autosteering and agronomic controls
  • Seeder features include multi-bin/tank rate control of up to eight tanks with any combination of granular, liquid and NH3
  • Multi-section boom control allows up to four sections with two multi-section granular booms (one for seed, one for fertilizer) and two multi-section liquid/NH3 booms
  • Each multi-section boom can have up to 16 individual sections
  • Optional blockage monitoring is available to monitor 100+ lines
  • Stackable, weatherproof and ISO compatible
  • Advanced auto section control (ASC) timing feature allows setting of section times to individually compensate for product travel times to outer sections of drill versus the inner sections
  • ASC provides increased accuracy with wide seeding drills currently being used in the market
  • Implement modeling feature adds depth to air drill that takes into account front and rear of implement when using auto section control
  • Blocked head monitoring option provides up to 40 sensors per EM-24 module, and up to a maximum of 240 sensors
  • Options include granular drive and liquid/NH3 drive (proportional and actuator); stopped shaft monitoring; granular section sensing and section control
  • Implement lift/lower control, down force pressure control, pump speed monitoring and forward speed fallback are also available options
