SomatXR Data Acquisition Modules

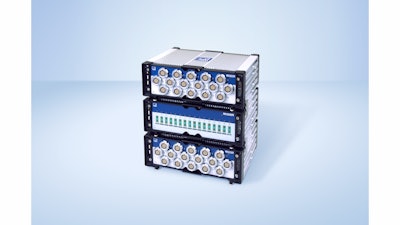

The HBM SomatXR data acquisition modules feature IP65/67 sealing for use in rugged environments.

Daq Somat Xr Group 003 5420773fdef56
Hbm 10056637

Built on proven technology and testing experience in harsh environments, HBM has developed the SomatXR family of data acquisition modules for use under extreme conditions.

  • Field-ready and can be used for an extremely diverse range of requirements and applications
  • Application examples include off-highway vehicles used in construction, agriculture and forestry, civil engineering and energy for structural monitoring
  • Currently three 24-bit amplifiers available
  • MX1601B-R measures standardized voltage, current and IEPE/ICP sensors on 16 individually configurable channels
  • MX1609B-R is a K-Type thermocouple amplifier providing 16 individually configurable thermocouple channels
  • MX1615B-R is a strain gauge bridge amplifier enabling up to 16 sensors or strain gauges in full, half or quarter-bridge configuration to be connected
  • Developed for measurements outside the laboratory, even under harsh ambient conditions
  • Protected from water, dust, shock and vibration
  • Meets IP65/67 degree of protection
  • Can be used in temperature range from -40 to 80 C
  • Vibration resistance of 10g and impact resistance of 70g have also been confirmed through standardized tests
  • Modules can be mixed in any configuration
  • Allows users to easily add or remove modules to meet testing needs
  • Enables use of one or many modules for testing
  • Placement close to measurement points improves signal quality, and alleviates complex and messy cabling situations
  • Provides precise synchronization via Ethernet/PTPv2 over a distance of up to 100 meters
  • No programming skills are required when running with catman software for test configuration
  • Offers ability to utilize TEDS (Transducer Electronic Data Sheet) for quick, easy and accurate test setup
  • Enables customization of users own sensor database
  • catman software offers powerful data visualization while collecting data, allowing configured triggers based on any inputs
  • Performs real-time math functions and helps validate collected data
