Antenna Co. AC30011 Multi-Constellation Antenna

Antenna Co.'s AC30011 antenna offers 65-70% efficiency and can be closely integrated with 4G cellular antennas.

October 18, 2016
The Antenna Company US

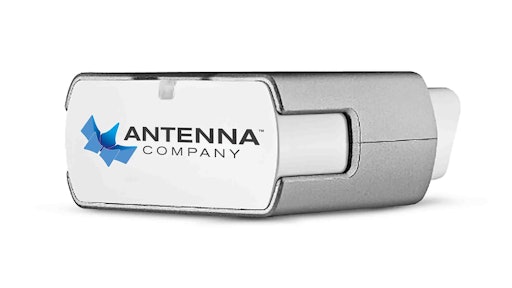

AC 30011 dongle small 5805357e5e5bb

Antenna Company announces the launch of the AC30011, a multi-constellation antenna for location tracking and positioning applications, supporting GPS, GLONASS, and BeiDou frequency bands.

  • Optimized for easy integration into industry standard OBD-II dongle form factors, allowing fast time-to-market for new designs without need for extensive and iterative tuning process
  • Tested with industry-leading GNSS chipsets
  • Provides greater coverage and accuracy in challenging RF conditions compared to ceramic GPS patch antennas
  • Offers omni-directional coverage pattern
  • Does not require external LNA or filter components to achieve good performance
  • Efficiencies of 65-70% are typical
  • Exhibits excellent impedance matching over frequency bands
  • Designed for close integration with 4G cellular antennas in telematics units to avoid coupling between antennas
Request More Information
Fill out the form below to request more information about Antenna Co. AC30011 Multi-Constellation Antenna
