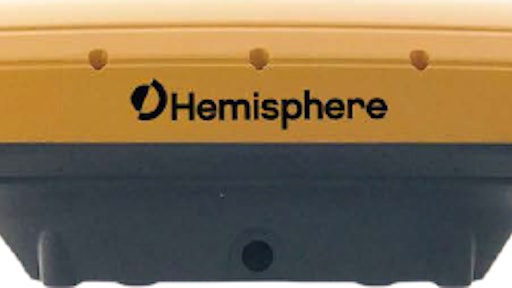

Hemisphere GNSS Vector VR500 Rugged All-in-One Smart Antenna

Introduced at CONEXPO 2017, the Vector VR500 All-in-One Smart Antenna from Hemisphere GNSS provides heading accuracy up to 0.2 degrees.

March 28, 2017

Hemisphere GNSS Inc.

Hemisphere Antenna 58d9314314a5a 58daae76d9e16

Hemisphere GNSS Inc. announces the release of the Vector VR500 Rugged All-in-One Smart Antenna.

Designed specifically for harsh machine control environments
Multi-frequency, multi-GNSS design
Helps equipment manufacturers deliver their own machine control and guidance solutions
Provides heading accuracy up to 0.2 degrees
Integrated UHF radio
Updates up to 50Hz
Meets stringent IP ingress and MIL-STD202G shock and vibration requirements
Fully scalable
Tracks GPS, GLONASS, BeiDou, Galileo, QZSS, and IRNSS, and is also Atlas L-band and SBAS capable
Connects with just one cable supporting integration of CANbus and UHF RTK radio with position and heading messages
Easy-to-use webUI allows user to control, manage and upgrade firmware and activations using Wi-Fi
Connectivity options allow corrections to be received via radio, Bluetooth, Wi-Fi, and Serial
Powered by Athena GNSS engine, providing centimeter-level RTK
Athena excels in virtually every environment where high-accuracy GNSS receivers can be used
Performance with long baselines, in open-sky environments, under heavy canopy, and in geographic locations experiencing significant scintillation
Integrated L-band adds support for Atlas GNSS global corrections for meter to sub-decimeter level accuracy
New Tracer technology helps maintain position during correction signal outages
Uses Hemisphere’s aRTK technology, powered by Atlas, allowing operation with RTK accuracies when RTK corrections fail
If Atlas-subscribed, will continue to operate at subscribed service level until RTK is restored

Fill out the form below to request more information about Hemisphere GNSS Vector VR500 Rugged All-in-One Smart Antenna
