Maplesoft MapleSim CAD Toolbox

Maplesoft has introduced the MapleSim CAD Toolbox which makes it easy to import CAD models into MapleSim.

Maplesoft CADToolbox 56606b10d257e
Maplesoft Logo 10957726

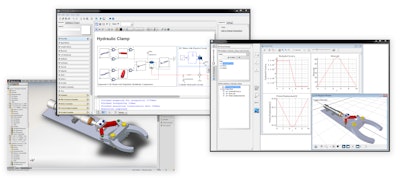

Maplesoft announces the release of the MapleSim CAD Toolbox, an add-on which allows engineers to bring their CAD assemblies into the MapleSim system-level modeling and simulation platform.

  • Enables users to better understand and improve their mechanical designs, and learn how their designs will behave as part of a larger, multidomain system
  • Users can apply the advanced analysis tools of MapleSim to investigate and optimize their designs and final application
  • Imports CAD models directly into MapleSim, recreating model components and preserving their kinetic and kinematic properties as well as spatial relationships between components
  • Offers feature detection, allowing users to easily add new coordinates at points of interest, such as the center of a hole or along the edge of a component
  • Provides easy sharing of coordinate frames between separate bodies, ensuring bodies will be properly aligned when joined
  • Handles files from virtually any CAD system through direct support for a large number of proprietary formats, including those from Inventor, NX and SOLIDWORKS, as well as the widely supported STEP and STL files formats
  • Once in MapleSim, models can be shared with other MapleSim users, or online using MapleSim Server, without requiring end user have access to original CAD system or CAD files
  • Available on Windows for both the English and Japanese versions of MapleSim
