dSPACE Smart Charging Station Emulator

The dSPACE Smart Charging Station Emulator supports international standards for charging communication such as ISO 15118 and DIN SPEC 70121.

May 10, 2021
dSPACE
Smart Charging Station Emulator
dSPACE
Dspace 10055308

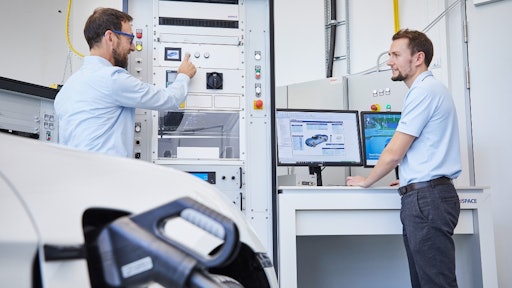

dSPACE’s Smart Charging Station Emulator enables manufacturers of electric vehicles and suppliers of battery systems to test their designs with different technical charging standards and protocols.

  • Simulates a large number of faults and develops them quickly and efficiently in line with requirements of international markets
  • Supports international standards such as ISO 15118 and DIN SPEC 70121, GB/T 27930, GB/T 18487, and CHAdeMO
  • Based on dSPACE’s Smart Charging Solution which is used for testing onboard chargers, charging stations, and communication modules
  • Includes a SCALEXIO real-time simulator, a dynamic and expandable model that runs on the simulator
  • Vehicle-to-grid (V2G) scenarios can be simulated
  • All components are contained in a robust rack with wheels to make the system flexible and mobile
  • Can be used in the laboratory and for tests on prototype vehicles in workshops
  • Features automatic cable recognition, connecting communication and charge release, insulation monitoring and emergency stop switches to ensure operator safety
  • Emulates a wide variety of charging stations and charging scenarios in real time
  • New charging standards such as CHAdeMO 3.0 or ChaoJi can be easily implemented
  • Supports AC charging up to 63 A and DC charging up to a maximum of 200 A or 85 kW (113.99 hp)
  • Flexibly adaptable to customer-specific charging supply requirements, as well
  • Offers almost unlimited options for manipulating electrical parameters and communication
