Tier 4i And Stage IIIB Engines

Scania's range of industrial engines are currently Tier 4i and Stage IIIB compliant and ready for Tier 4 Final.

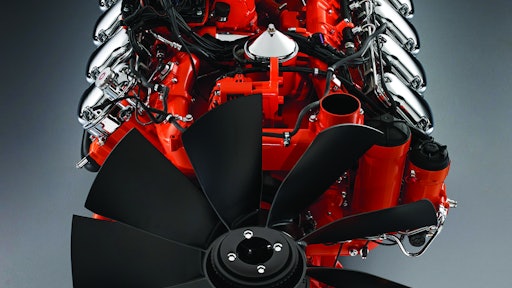

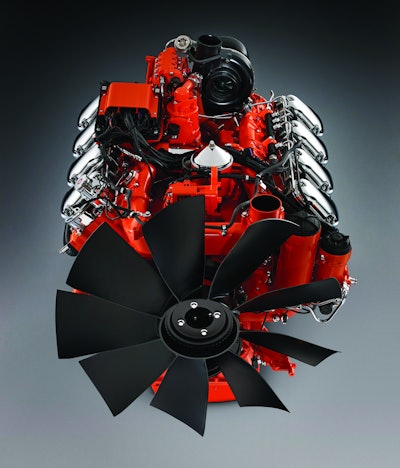

Scania industrial 16-litre, V8 engine 550/650/700 hp, compliant to Stage IIIB/Tier 4i with SCR.
Scania industrial 16-litre, V8 engine 550/650/700 hp, compliant to Stage IIIB/Tier 4i with SCR.

Scania’s range of industrial engines are compliant to Tier 4i and Stage IIIB regulations and ready for the 2014 emission legislation, Tier 4 final and Stage IV. With Scania-developed systems for engine management and emission control,the engine range provides a blend of performance and operating economy.

  • Uses same modular engine platform for all steps in emission legislation to eliminate need for global OEMs to redesign equipment
  • Provides high uptime, generous torque at low revs, good fuel economy and prompt engine response
  • Employs XPI (extra high-pressure injection) common-rail fuel injection system which allows freedom of injection timing and pressure
  • XPI offers up to 2,400 bar injection pressure
  • High injection pressure lowers particulate emissions
  • Bore and stroke provide increased swept volume
  • Offers increased combustion pressure
  • Includes SCR exhaust aftertreatment
  • Saver ring in the cylinder liner prevents coke build-up at the top of piston
  • Engine management system controls fuel injection, exhaust aftertreatment, charge-air and engine operating temperature
