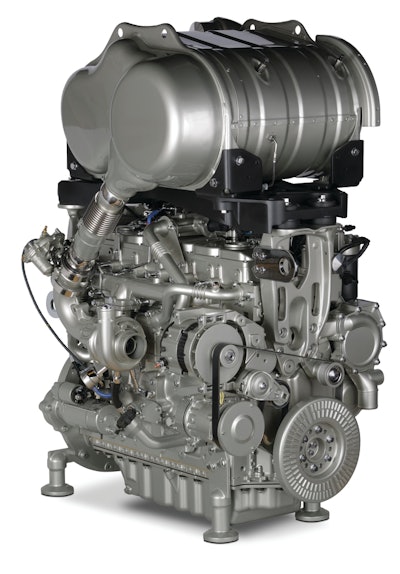

1206F-E70TA Single Turbo Engine

Perkins displayed its latest Stage IV/Tier 4 Final engines at BICES 2013, including the 1206F-E70TA single turbo engine.

1206f E70ta 11217622
Perkinslo 10108214

The Perkins 1206F-E70TA is a six cylinder, single turbo engine featuring Selective Catalytic Reduction (SCR) technology? to meet EU Stage IV/U.S. EPA Tier 4 Final emissions regulations.

  • Provides large amount of torque at low speeds
  • Offers up to 151 kW (202 hp) at 2,200 rpm with maximum torque of 870 Nm at 1,400 rpm
  • DOC/DPF canister and SCR system packaged into one integrated module, which can be positioned remotely in a machine chassis or directly on top of the engine
  • Lightweight yet compact dimensioned aftertreatment module minimizes space claim in engine bay and incorporates a number of features to ease installation
  • Aftertreatment features include flexible inlet and outlet options, pre-installed electronics and DEF line hook ups
  • For very tight installations a fully insulated aftertreatment module is available that lowers surface temperature
  • DPF uses passive regeneration which is totally transparent to the operator and service free, reducing maintenance costs over life of machine
  • DPF design facilitates easier installation in engine bay since no direct access is required for ash removal
  • Delivers estimated 5% better cycle fluid consumption over previous models
