DL06P Model Tier 4 Final Engine

The Doosan DL06P Tier 4 Final engine features an in-line 6 cylinder configuration and max power output of 192 hp.

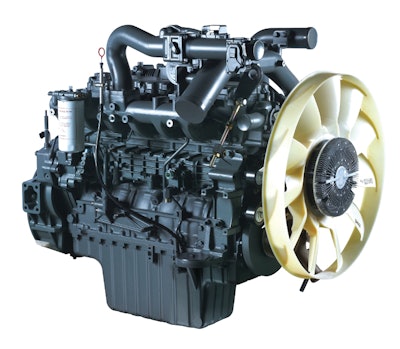

Doosan Dl06t4fengine 11396448
Doosan Logo 11396442

The DL06P model engine from Doosan Infracore Engine Business Group meets Tier 4 Final emissions regulations, and offers an in-line 6 cylinder configuration.

  • Features bore and stroke of 100 x 125 mm
  • Displacement is 5,900 cc
  • Includes turbocharged and intercooled aspiration
  • Maximum power output is 192 hp (141 kw) at 1,900 rpm
  • Maximum torque is 805 Nm at 1,400 rpm
  • Diesel oxidation catalyst (DOC) and selective catalytic reduction (SCR) aftertreatment system meets emissions regulations
