Caterpillar 3500E Series Engine

The Caterpillar 3500 E Series engine features a new block and crankshaft design for increased durability and can be remanufactured to help customers extend the life of their investment.

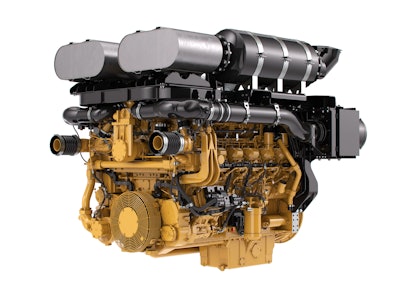

Mrg 3512 E Tier 4 Final Well Stimulation 583c569282d4d
Caterpillarinc 10055176

Caterpillar Inc. introduces the 3500E Series engine, the next generation of its industry-leading 3500 family of engines.

  • Provides up to 20% greater power density, 10% greater fuel efficiency, enhanced durability, and longer life
  • Designed to be remanufactured and key components are backwards compatible
  • Power range of 507-3,015 bkW (679.9-4,043.2 hp)
  • Achieves greater power from enhanced cast iron engine block and cylinder heads
  • Displacement of 78 L and rated speeds of 1,200-1,925 rpm
  • New block and crankshaft design increases durability
  • Features two available fuel systems—mechanical electronic unit injector or common rail—that are optimally applied by application and regulated markets
  • Uses selective catalytic reduction (SCR) or exhaust gas recirculation (EGR) aftertreatment system, depending upon customer application
  • Meets U.S. EPA Tier 4 Final and EU Stage IIIB emissions standards
