Cat 3516E High-Horsepower Engine

Caterpillar's Cat 3516E engine meets Stage V and Tier 4 Final emissions regulations using an SCR-only aftertreatment.

C3516 1
Caterpillarinc 10055176

Caterpillar introduces the Cat 3516E—a high-horsepower engine dual-certified for EU Stage V/U.S. EPA and CARB Tier 4 Final emissions regulations.

  • 78-L V16 industrial engine
  • Single continuous rating produces 2,100 hp (1,566 kW) at 1,650 rpm and 8,275 lb.-ft. torque (11,220 Nm) at 1,200 rpm
  • Capable of being operated at maximum power and speed without interruption or load cycling thanks to its robust design and selection of heavy-duty componentry
  • Uses dual-SCR-only aftertreatment to meet EU Stage V, U.S. EPA Tier 4 Final, and California Air Regulations Board (CARB) requirements
  • Requires diesel exhaust fluid, but provides 1.3% lower total cost of ownership due to advanced engine technology designed to improve overall fluid consumption
  • Based on core 3516 series engine
  • Designed to be reliable in range of harsh conditions and rough jobsites, suiting use in wide array of demanding applications

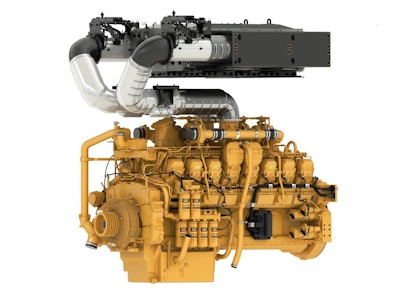

 C3516 With Aftertreatment
