Multi-X Multi-Coupling Plate

The Multi-X range of multi-plates from CEJN exceed challenging mobile hydraulic demands.

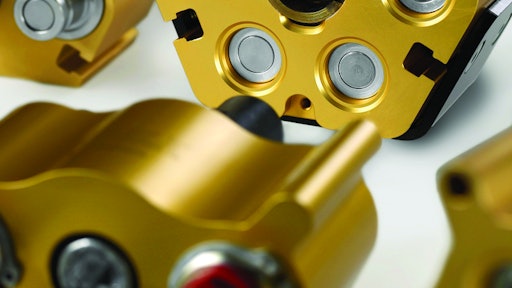

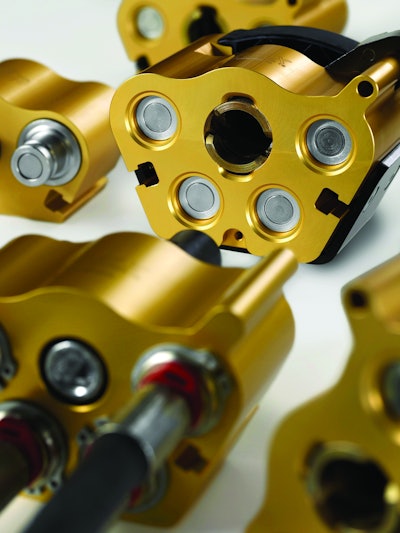

Multix Artistic New 10224468
Cejn Logo Original Cmyk

The CEJN Multi-X is a range of multi-plates designed to meet the demands of challenging mobile hydraulic applications and makes it possible to connect multiple hydraulic lines in one single operation.

  • Max. working pressure 35 MPa
  • Min. burst pressure 120 MPa
  • Temperature range -30 to 100 C
  • Material, female plate: Zinc plated steel, anodized aluminum, zinc, brass
  • Material, male plate: Zinc plated steel, anodized aluminum, brass
  • Material, seal: Nitril (NBR)
  • Six standard configurations, matching the most frequent applications: sizes from DN 10 to DN 19, with two or four ports in each plate
  • All plates can be equipped with an electric connector
  • WEO Plug-in as standard, with self-aligning hose connections that prolongs hose life and minimizes downtime during replacements
  • Ergonomic lever, with a locking button preventing unintentional disconnection, placed perpendicular to hydraulic lines to keep operators hands safe
