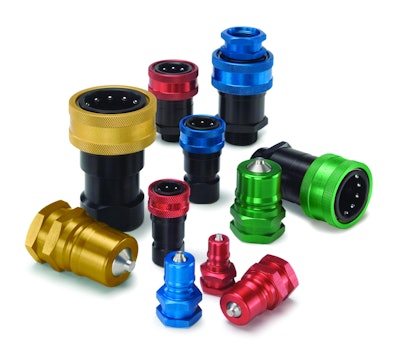

Aluminum 60 Series Quick Couplings

Aluminum 60 Series quick couplings from Parker provide corrosion resistance to low-pressure fluid applications.

Seriesa60fittings 10254588
Parker Logo Big 10933185

The Quick Coupling Division of Parker Hannifin Corporation offers the Aluminum 60 Series general-purpose quick couplings for use across a spectrum of low-pressure fluid applications. These double shut-off couplings are suitable for both pressure and vacuum applications.

  • Aluminum construction is lightweight and corrosion resistant
  • Up to 60% lighter than steel couplings
  • Modular two-piece design provides a various end configurations
  • Hard coat, anodized finish resists scratches and wear
  • Positively stopped valves prevent flow checking
  • Provides a wide range of seal options
  • Dual interface seal design protects against leaks
  • Crimped valve seals prevent seal wash out
  • Operating pressure ratings up to 1,000 psi
  • Rates at 3 to 50 gpm flows
  • Available in 1/4 in. to 1 in. body sizes with various port ends and seal options for versatility
  • Compliant with ISO 7241-1, Series B
  • Color coding options available
