Voswinkel High-Performance Coupling System

Voswinkel's high-performance coupling system includes an HX male tip and UX female body which work in tandem to provide a maximum volumetric flow rate of 240 liters per minute.

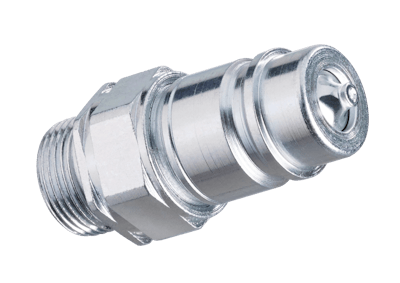

HX male tip
HX male tip
Loresstau 10108159

Voswinkel, a company of the Stauff Group, has developed a high-performance coupling system for agricultural equipment with heavy-duty attachments.

  • Exceeds the requirements of ISO 7241-1 Series A and ISO 5675
  • HX male tip and UX female body work in combination to achieve maximum volumetric flow of 240 liters per minute
  • Features low pressure losses, enabling safe operation in heavy-duty tractors and attachments
  • Single-hand coupling sleeve can be connected under full operating pressure
  • Includes breakaway function and push-pull function, as well as low connection and disconnection force
  • Female body is available in two different lengths (versions S and L) which makes it compatible with most commercially available couplings
  • Geometry of male tip, spanner size and thread variants correspond to standard of HP Series
  • Features mechanical locking system and high-flow valve unit
  • Can be connected under full operation pressure in the male tip
  • Female body designed for single-hand operation
  • Coupling body made of high-strength steel
  • Temperature range is -30 to 100 C
  • Optionally available with dust protection
