2PD05 Hydraulic Pump Drive

Durst introduces its 2PD05 hydraulic pump drive featuring a two-pad design with 10-inch pump centers.

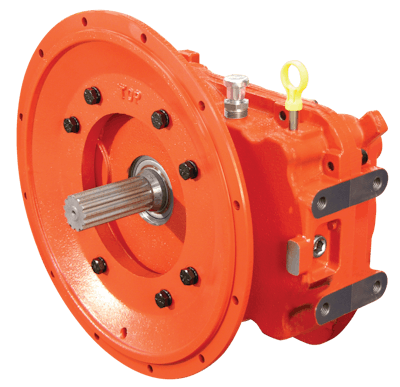

2 Pd05 Front
Durst Logo Cmyk

Durst announces the release of its model 2PD05 hydraulic pump drive. The pump includes a two-pad design with 10-inch pump centers and 5-inch gear centers.

  • For applications requiring compact footprint, lighter weight and versatile mounting configuration
  • Weighs approximately 200 lbs., and measures 8 in. deep x 11 in. high x 21 in. wide
  • Meets SAE and AGMA standards and is compatible with SAE pump shafts up to a 13 tooth — 8/16 spline (SAE D)
  • Simple, one-piece modular format allows for easier assembly and installation
  • Features maximum torque rating of 700 lb-ft
  • Rated for a maximum input power of 370 hp
  • Offers choice of gear ratios from 1:1 to 2:1
  • Allows for flexible mounting options, including horizontally or vertically, to overcome space constraints and restrictive limitations in equipment design
  • Class 10 spur gears run on heavy-duty ball bearings
  • Bearings and gears are self-contained within housings
  • Patented casting design keeps oil constantly flowing through bearings and provides for wet spline operation, even at startup, preventing fretting corrosion
