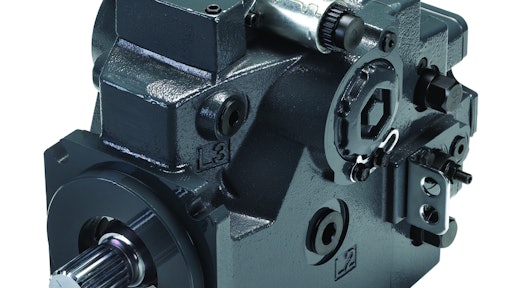

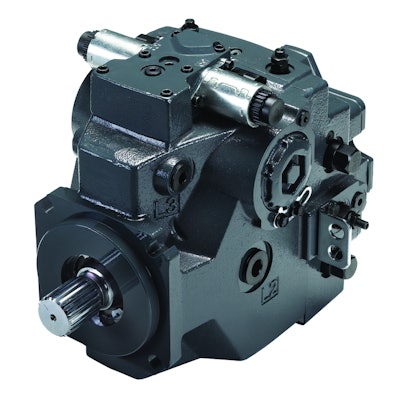

Sauer-Danfoss has launched a new 60cm3/68cm3 H1 piston pump frame size.
Sauer-Danfoss has launched its 60cm3/68cm3 and 89cm3/100cm3 H1 piston pump frame sizes.
- H1 solutions can help compensate for reduced power levels of Tier IV/Stage IV emissions-compliant engines
- Frame sizes are especially suited for combines, telehandlers, forage harvesters, wheel loaders, concrete and asphalt pavers, road rollers and forestry machinery
- H1 pumps share a common electronic control platform
- Electric-only control options: EDC - electrical displacement control (with mechanical feedback) for load-independent speed control; FNR - forward/neutral/reverse, for simple on/off work function control; NFPE - Non-feedback Proportional Electrical Control, for load dependant control systems
- High-response pressure limiter (PL) option; active PL can limit system pressure by reducing the volume of oil that flows over the high pressure relief valve resulting in less heat is generated within the system and the need for cooling is reduced
- Control cut-off (CCO) and control over-ride (COR) options available
- Single-fault tolerance for AC vehicle transmission systems
