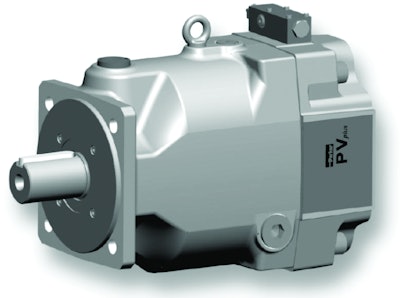

PV360 Axial Piston Pump

Parker's PV360 Axial Piston Pump provides quiet, modular design and helps increase productivity.

Pv360pump 10254416
Parker Logo Big 10933185

Parker Hannifin Corporation introduces the addition of the PV360 to the PVplus axial piston pump family. A variable displacement, 360 cc/rev pump, the PV360 addresses a wide range of heavy-duty mobile and industrial applications with operating pressures up to 5,000 psi (350 bar).

  • Large servo piston provides fast response
  • Ripple chamber technology produces between 40% and 60% less pressure and flow pulsation
  • Reduces pump noise and amount of sine waves capable of loosening hydraulic connections and damaging downstream components
  • Modular design provides wide variety of compensator options including standard pressure, remote pressure, load sensing and horsepower
  • Enables direct mounting of pilot valves without any piping for simple and straightforward in-field conversion
  • Meets local standards around the world by enabling metric and SAE mounting interfaces as well as metric or UNC/UNF threads/ports
  • Requires no special tools for installation, maintenance or alteration of configuration
  • 100% through-drive capable and equipped with easily accessible displacement adjustment screw
  • Allows double configurations where both pumps are used at full flow and nominal pressure at the same time, enabling multiple pump systems built with one drive motor
  • Applications include cranes and lifting equipment, presses, metal forming machines, hydraulic power units (HPUs) and marine use
