Liebherr LH30VO Axial Piston Pump

Introduced at Agritechnica 2015, Liebherr's LH30VO axial piston pump features a swash plate design and delivery rate of 45 cubic centimeters per rotation.

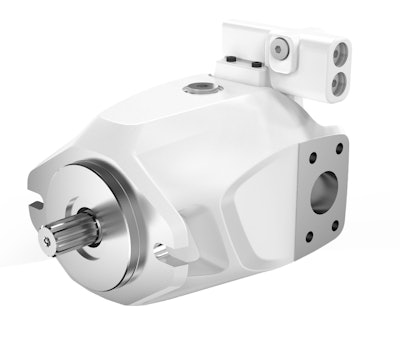

liebherr axial piston pump LH30VO agritechnica 300dpi 565defdb5bfb0

The LH30VO axial piston pump of swash plate design from Liebherr Components complements the existing product portfolio of medium pressure pumps in the range of 280 bar nominal pressure.

  • For open circulation
  • Features specific delivery rate of 45 cm³ per rotation
  • Production-optimized design
  • Offers compact and dynamic housing design
  • Swash plate adjustment is precise and robust
  • Fitted with two controls, an electro-proportional pressure control with negative characteristic curve (DE) and a Load-Sensing control (LS-DA), i.e. a pressure cut-off or pressure restriction
  • More controls will be available in the future, including proportional volume control (VE), power control (LR) and electronic pressure control with positive characteristic curve
  • A 130% through-drive option is available
  • Designed as a modular system with more sizes to be added
  • For use in mobile machinery applications such as for use as a steering pump, fan drive or as a drive for equipment cylinders
