MTE Hydraulics Pressure Balanced Gear Pumps

MTE Hydraulics' pressure balanced gear pumps are manufactured with an aluminum construction in both Group 1 and Group 2 Series gear pump designs.

August 7, 2017
MTE Hydraulics Inc.

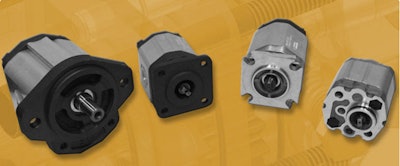

Capture1
Mte Logo Web Legacy

MTE Hydraulics' pressure balanced gear pumps are manufactured with an aluminum construction in both Group 1 and Group 2 Series gear pump designs.

  • Optimized efficiency to accommodate the toughest application requirements
  • MTE Group 1 Series pressure balanced pump displacements: 0.80-10.50 cc (0.0488-0.6406 cu.in/rev)
  • MTE Group 2 Series pressure balanced pump displacements: 4.4-31.40 cc (0.2685-1.9158 cu.in/rev)
  • Nominal working pressures up to 3,500 psi (241.32 bar)
  • Maximum pressure up to 5,000 psi (344.74 bar)
  • Minimum speed for pressure 400 rpm
  • Maximum speed for pressure up to 6,000 rpm
