LER202

July 10, 2007
Integrated Hydraulics Inc. (Eaton)

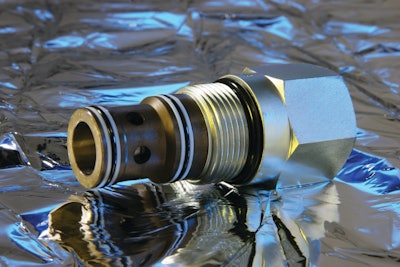

Ler202 10056985

Integrated Hydraulics offers the LER202, a pilot-style spool cartridge for use with external pilot controls. The spool is biased closed by a spring which has a separate chamber referenced to a third port to which the control signal is applied.

  • Enables a hardened and ground spool to run in a closely tolerance sleeve that separates inlet and outlet ports
  • Can be used in many hydraulic circuits
  • Standard relief, sequence, flow, solenoid or proportional valves can all be used to control the LER202
