HYDAC PWK06J Proportional Directional Control Valves

The PWK06J proportional directional control valves feature internal leakage of less than 100 cc/min.

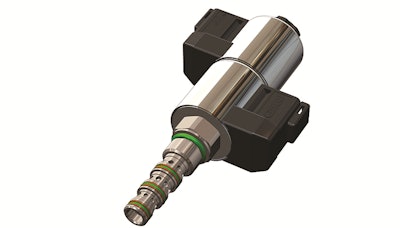

Pwk06 J External
HYDAC
Hydac 10725188

HYDAC introduces the PWK06J series of proportional directional control valves.

  • Currently available in Motor Spool “J”, with a closed center option to follow
  • Compact in size, and is a fraction of the size of other 3 position 4 way proportional directional valves
  • Provides great low flow accuracy and repeatability
  • Internal leakage is less than 100 cc/min
  • Hysteresis is less than 6%
  • Delivers linearity within 3% and repeatability within 3%
  • 12W ‘D’ or ‘P’ type coils in all voltages and connections
  • 1,000 hour salt fog rust protected
  • Use with DW06V for optimal pressure compensated operation
