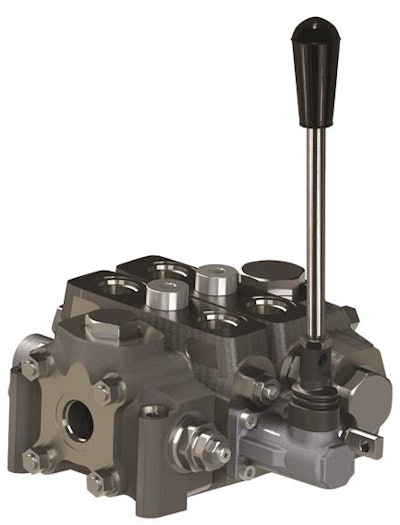

V250 Directional Control Valve

Muncie Power Products' V250 directional control valves are made from high-grade iron castings to ensure operation in high pressure applications.

January 13, 2015
Muncie Power Products
MunciePowerProducts V250DirectionalControlValve 54b53a5aa2958
Muncie Powerburst Rgb Logo 3 Inches Wide 59653c3448651

Muncie Power Products introduces the latest addition to its lineup of directional control valves, the V250.

  • Features high-grade iron castings, and hard chrome and nickel-plated spools
  • Offers higher pressure capabilities
  • Designed for flow rates up to 75 GPM (280 LPM)
  • Maximum pressure of 4,000 psi (275 bar)
  • Withstands extreme applications and resists wear
  • Provides higher flow rates and low pressure drops
  • Tight tolerances and precision machining keep internal spool leakages low
  • Different spool, control, positioner and accessory options are available for customization
  • Work port relief valves, anti-cavitation valves, combination relief/anti-cavitation valves and pilot operated relief valves are available for your individual work section protection needs
  • Inlet relief valve is standard
  • Spools designed for parallel operation







Request More Information
Fill out the form below to request more information about V250 Directional Control Valve
