Danfoss PVG 128 and PVG 256 Valves

Danfoss' PVG 128 offers flow rates up to 300 lpm and PVG 256 valves up to 400 lpm.

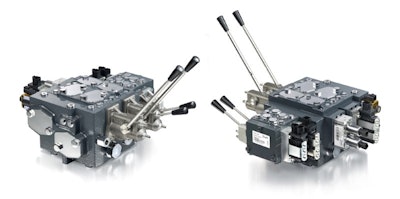

Pvg 126256 Valve Group
Logotype Cmyk Pms 11172710

Danfoss Power Solutions has added two high-flow proportional valves to its PVG portfolio, the PVG 128 and PVG 256 valves.

  • Designed to easily integrate with existing line of Danfoss high performance proportional valves — PVG 16 and PVG 32 — allowing modularity from low to high hydraulic flow within the same valve stack
  • High-flow valves
  • Well suited for use in demanding applications such as large mobile/truck mounted cranes, crawler cranes, ship cranes, winches, drilling machines, etc. where flow and durability is essential
  • Using with other valves in PVG family allows OEMs to easily enhance machine performance while improving productivity and lowering energy consumption
  • Extends range of hydraulic flow within series up to 300 lpm (79 gpm) with the PVG 128 and up to 400 lpm (105 gpm) with the PVG 256
  • Special turbo version of PVG 256 valve is also available, increasing hydraulic flow up to 500 lpm (132 gpm)
  • Use of common parts within PVG platform means the high-flow valves can easily be incorporated into existing applications
  • Pre-compensated valves
  • Offers smooth, load-independent flow control
  • Individual load-sensing A/B relief valves limit pressure on each work port of a valve section, reducing material stress
  • Uses same actuation type as PVG 32 and PVG 16 valves, assuring compliance with electrohydraulic actuators, PVHC actuators and PLUS+1
  • Use of PVE S7 and PVED S5 from Danfoss in conjunction with PVG 128/256 valves ensures high degree of precision and repeatability of valve performance
  • CANbus control lowers cost of installation and ensures data availability on machine’s existing bus system
  • Each valve section has manual control that allows work to continue even in the event of electrical power failure
