TS Series Thumbstick

The TS Series Thumbstick from APEM is available with a threaded D-flat housing that provides full EMC protection.

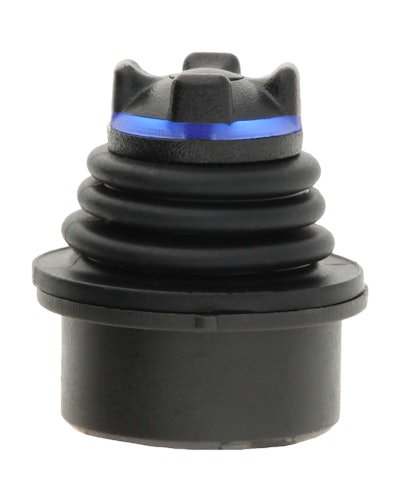

Ts Blue
Logo Apem 10933224

APEM Inc.’s TS Series Thumbstick range is now available with an LED backlighting option.

  • Backlighting option utilizes an overmolded polycarbonate “Castle” style actuator to effectively diffuse the LED and provide illumination over a wide viewing angle
  • Both red and blue color options are available
  • Thumbstick can be specified with a black oxide coated brass threaded D-flat housing, making for simplified drop-in panel installation
  • Total current draw no greater than 16 mA
  • Ideally suited for wireless remote control applications where visibility is low and battery life and power consumption are critical
  • Threaded metal body provides full EMC protection, including EMI, ESD, and is environmentally sealed up to IP69K
  • Mounting accessories include a stainless steel lock washer and hex-nut
  • Can be specified with a Molex 2.00 mm (0.079 in.) pitch connector in the bottom of the housing
  • Single output configurations feature a five position Molex 502443-0570 connector
  • Dual output configurations feature an eight position Molex 502443-0870 connector
